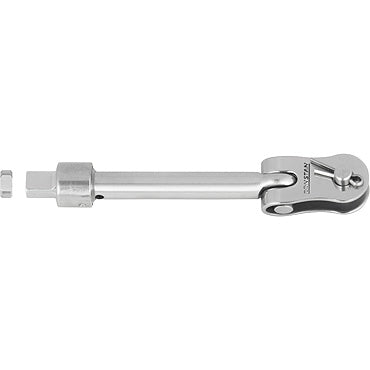

Ronstan Eye Body Assembly & L/Nut, Type 10, 5/16€
Ronstan Eye Body Assembly & L/Nut, Type 10, 5/16€
91 in stock
SKU:RF1484-05
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- PayPal & Venmo: Available on desktop and mobile. Pay with your PayPal balance or a linked payment method.
- Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
ORDER PROCESSING:
Please allow 1-3 days to process your order.
SHIPPING CUTOFF TIME:
Same day shipping cutoff time is 3PM Eastern Standard
DELIVERY TIMES:
Our default shipping method is Ground shipping and on average is 4-7 days till delivery is made. We offer various expedited shipping methods that can be viewed in checkout.
STORE PICKUP - 12 Hammock Rd South, Unit 105, Westbrook, CT 06498
Orders can be picked up daily, from 9AM-5PM, Monday-Friday. An email will be sent when your order is ready for
pickup.
Return
Return
At Fusion Outfitters, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 60 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
How to Start a Return:
If you wish to return an item, simply contact us at
with your order number and details about the item you'd like to return.
Once your return is approved, we’ll provide you with a prepaid return shipping label (for eligible returns) and instructions on how to send back your item.
Who Pays for Return Shipping?
- If the item was defective, damaged, or incorrect, Fusion Outfitters will cover the cost of return shipping.
- If the return is due to any other reason, such as change of mind, the customer is responsible for return shipping costs.
Product Description
ELEGANT DESIGN, EXCEPTIONAL PERFORMANCE
From their clean lines to the use of the highest grade materials and quality finish, Ronstan Type 10 turnbuckles are engineered to deliver performance while enhancing the appearance of any yacht, or tensile project.
TYPE 10
Type 10 closed body turnbuckles have a sleek, modern profile with no sharp edges. They are easily adjusted by turning the unique adjustment nut, which is free to rotate within the sleeve on the turnbuckle body, and are secured with a quick turn on the locking nut. A sight hole is provided in the body to verify adequate thread engagement. With fine thread and single end adjustment, Type 10 turnbuckles are much easier to adjust than conventional turnbuckles, and the use of dissimilar but compatible metals for the threaded components avoids the risk of thread seizure. Toggles end models are also available, designed with full lateral articulation for easy installation and connection compatibility.
Matching threaded ends have rolled threads Ronstan rigging fittings have rolled external threads for maximum strength and reliability - unlike cut threads, the stainless steel bar is formed up and down to create a thread with the grain remaining unbroken and flowing the full length of the thread. Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort.
ROLL SWAGE INTEGRITY
Matching swage fittings suit industry-standard roll swaging presses and dimensions are derived from the original 'Milspec' for maximum integrity. They are suitable for use with modern and traditional wire constructions, including 1x19, 7x19 and compact strand.
WIRE TERMINATION OPTIONS
A full range of eye, fork and toggle fittings complement the turnbuckles to permit assembly of finished rigging elements to suit virtually any application.
CALIBRATED TURNBUCKLES
For accurate, repeatable settings of rig tension and precise adjustment, calibrated turnbuckle models are also available for wire sizes up to 6mm (1/4"); thread sizes 1/4", 5/16", 3/8" UNF.
- Sleek modern profile
- Easy to adjust than conventional turnbuckles due to fine thread and single end adjustment
- Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort
- Easily adjusted - by turning the unique adjustment nut
- Lock nut included to secure desired length
- Site hole to indicate minimum terminal engagement
- Use of dissimilar but compatible metals avoids the risk of thread seizure
- Threaded eye, toggle and swage terminal end options available
- Thread - 5/16" UNF
- A - 1/4 in.
- B - 11/32 in.
- C - 4 5/16 in.
- D - - in.
- E - 5/16 in.
- B.L. - 5190 lb.
- Weight - 3.3 oz.
Materials
- Grade 316 stainless steel body, lock nut, toggle and pins
- Aluminium bronze adjustment nut
